A compact LED Line Light with flexible mounting options for applications with space restrictions.

COBRA Flex is ideal for high-speed line scan and web inspection where installation space is restricted. This innovative new product offers the extreme brightness and high uniformity of our COBRA Slim series product in a more compact and flexible package. Learn more about our full range of led line lights

Download the DatasheetContact Us

Key Features:

  • Delivering intensities up to 1350kLux
  • Compact design with flexible mounting options
  • Extreme brightness & high uniformity
  • Field adjustable focusing distance & diffusers
  • Wavelengths from UV to visible and IR
  • Modular: Available in any length up to 2 meters
  • Mounting: Numerous mounting options for maximum flexibility

Key Applications:

  • Solar Cell Inspection
  • Foil, Paper and Plastic film inspection
  • PCB inspection
  • Glass inspection
  • Semiconductor inspection
  • Flat Panel Display inspection

All The Functionality With Added Flexibility

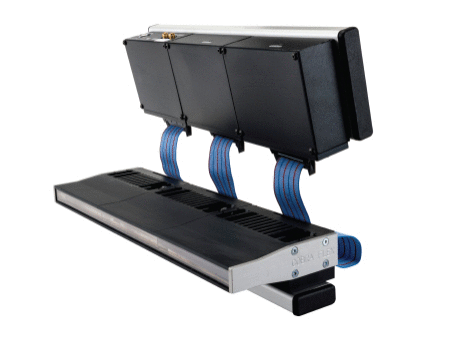

The COBRA Flex design houses the control electronics separately from the light head allowing for a more compact light module. A number of mounting options are provided to allow for maximum flexibility and the modular nature of the product means that it is available in any length up to 2 meters.

Configurable to application needs

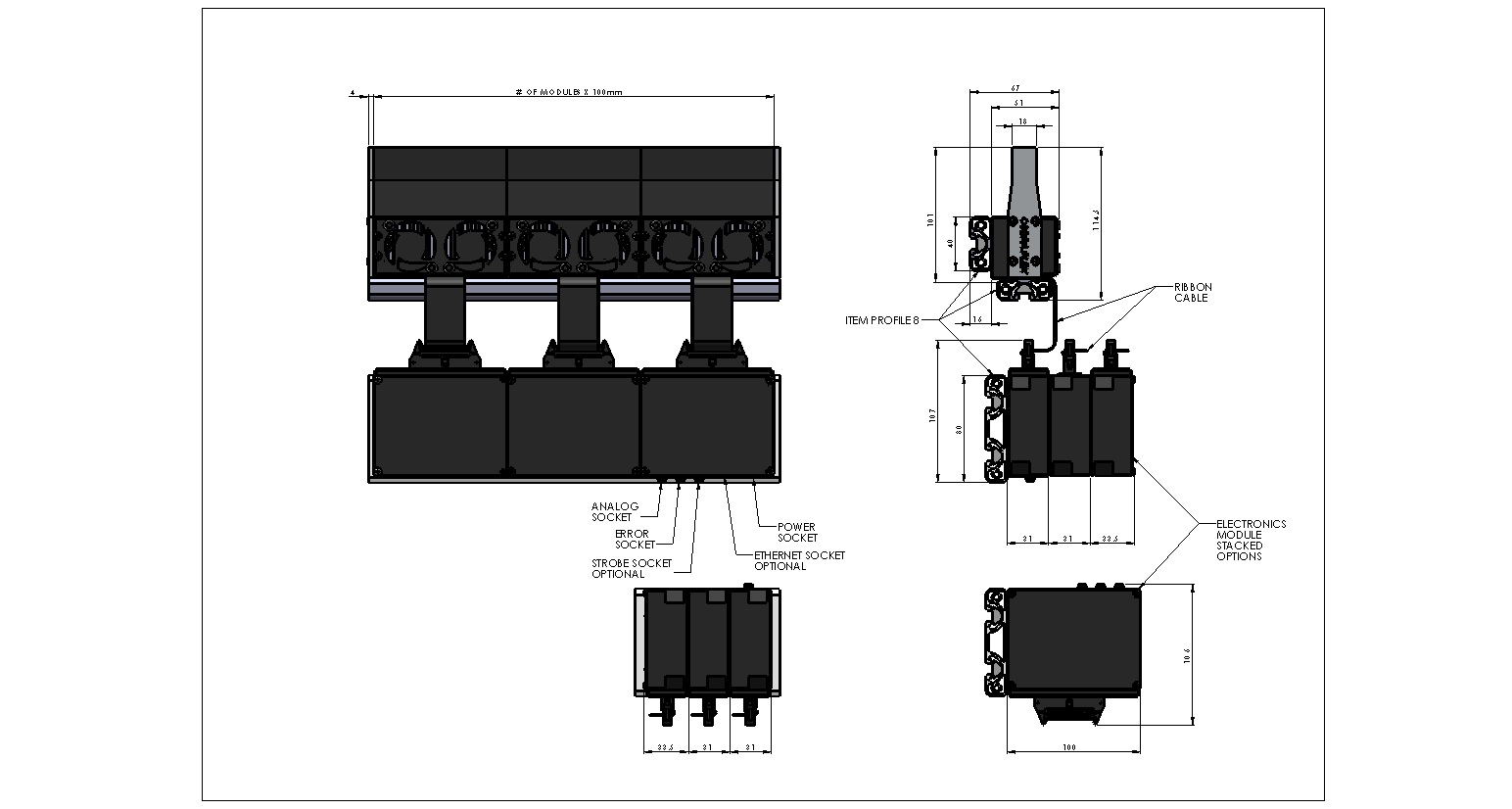

COBRA Flex LED line light is configurable to your application needs. To see how COBRA Flex would fit into your system, configure and download a CAD model in your chosen format. Click the button below.

Configure and Download CAD Model

COBRA™ Flex

Linescan Illuminator

Part Number: C-IF-0365-0100-S-0-D0

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT


Please wait while data loads…


Your CAD file is being generated.

This process usually takes less than 1 minute.

Ensure Optimum Illumination For Your Application

UV, Visible & IR wavelengths are available along with a wide range of optical options to ensure the optimum illumination for your application. Additional options include strobing function and onboard Ethernet control. COBRA Flex is also available in a COBRA Max configuration which can deliver up to twice the intensity of the standard COBRA™ Flex.

Download the DatasheetContact Us

Need help to optimize for your application?

For comprehensive technical support. Talk to us.

Contact UsContact Us

Bernhard Russell

Inside Sales

Andrea Gregorio

Inside Sales

A Complete Solution Provider

Configure or customize your product to your application requirements.  Our experienced multidisciplinary team will work within your specification, timescales, and budget.

25 Years’ Pioneering LED Technology

For more than 25 years, we have pushed the boundaries to optimize LED technology delivering high-performance, reliable, LED solutions maximizing system performance.

A Partnership Approach

We work in partnership with our customers supporting them through specification to completion and providing responsive, knowledgeable support.
