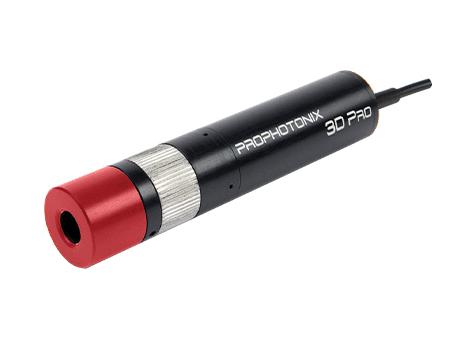

Structured Light Laser with an adjustable focus for precision 3D imaging

The 3D PRO™ Adjustable Focus Laser maintains the high performance of our structured light lasers series with the addition of an adjustable focus. The lasers are compact and cylindrical for easy integration and the user-adjustable focus ensures precision.

Download the DatasheetContact Us

Key Features:

  • Compact, cylindrical form factor for easy mounting
  • Excellent uniformity
  • Line widths of 40 μm at 120 mm
  • Available options include: wavelengths, power levels, fan angles, intensity control and strobe

Key Applications:

  • 3D measurement
  • Dimensional scanning
  • High precision alignment, pointing, positioning
  • Automated inspection

Ideal for Demanding Machine Vision Applications

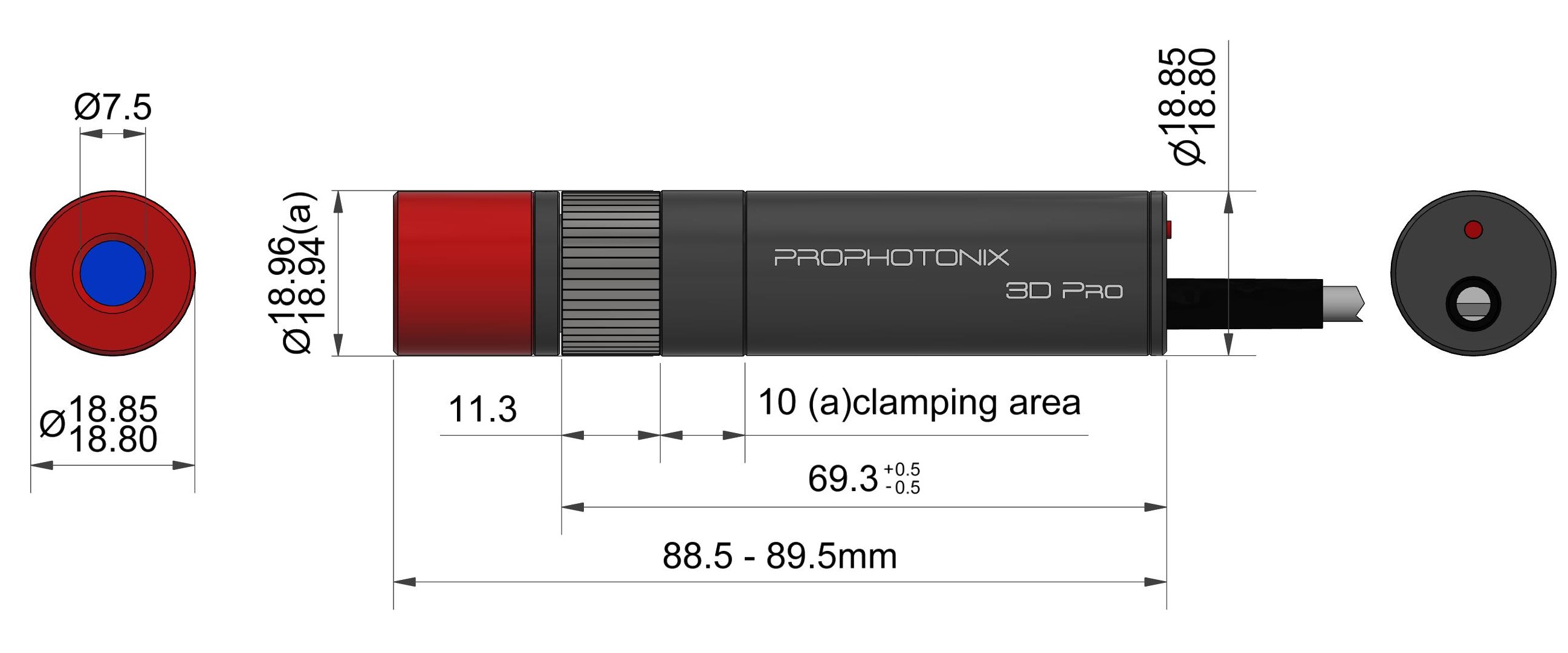

The 3D PRO™ Adjustable Focus Laser is 19mm in diameter for easy integration into new and existing machine vision systems. The laser is focused externally and designed for smooth adjustment with an internal lock-in mechanism for maintaining desired focal distance.

Wide Range of Options Available

A 3D PRO™ Adjustable Focus Laser offers excellent uniformity with line widths down to 40μm at 120mm which is ideal for inspection applications that demand a high degree of accuracy. They are available with diode powers up to 100 mW and fan angles between 10° and 90°. Wavelengths range from 520nm to 850nm and include 635nm and 660nm. Electronic options consist of TTL modulation up to 100kHz and analog power control for intensity adjustment. The 3D PRO™ Adjustable Focus Laser is available in a wide variety of line and diffractive optic options.

Download the DatasheetContact Us

Ideal for a wide range of applications

The 3D PRO™ Adjustable Focus Laser’s high performance makes it ideal for applications such as 3D measurement, dimensional scanning, high-precision alignment, pointing and positioning, as well as automated inspection.

Configurable to your Application’s Needs

The 3D PRO™ Adjustable Focus Laser is configurable to your application needs. To configure your 3D PRO™ Adjustable Focus Laser and download a CAD model, click the button below.

Configure and Download CAD Model

3D PRO™ Adjustable Focus Laser

Structured Light Laser Diode Module

Part Number: DV-375-035-L01-S-10-S-S-2

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT


Please wait while data loads…


Your CAD file is being generated.

This process usually takes less than 1 minute.



Need help to optimize for your application?

For comprehensive technical support. Talk to us.

Contact UsContact Us

Bernhard Russell

Inside Sales

Andrea Gregorio

Inside Sales



Laser Diode Technology Experts

25 years of experience in laser diode technology allows us to deliver high-quality laser diode modules to meet specific requirements.

A Partnership Approach

We work in partnership with our customers to ensure the best solution configured or custom-designed for your application needs.

Excellent Service

We deliver reliable, high-quality products, responsive technical support, and maintain high service levels.

Other Products in the Range:

  • 3D Pro Laser

    The 3D PRO laser is designed for easy integration into machine vision applications. It delivers high performance and high uniformity from a compact form factor. The 3D PRO laser is available with a customer-specified fixed focus.

    Discover >>
  • 3D PRO Mini

    As the name suggests, the 3D PRO Mini is extremely compact at just 10mm in diameter. Designed for machine vision applications where space is restricted, these lasers offer excellent performance from a compact package.

    Discover >>
  • PROdigii Digital Laser Module

    The PROdigii digital laser module has been designed to deliver outstanding wavelength stability and thermal management in even the most challenging operating environments.

    Discover »
